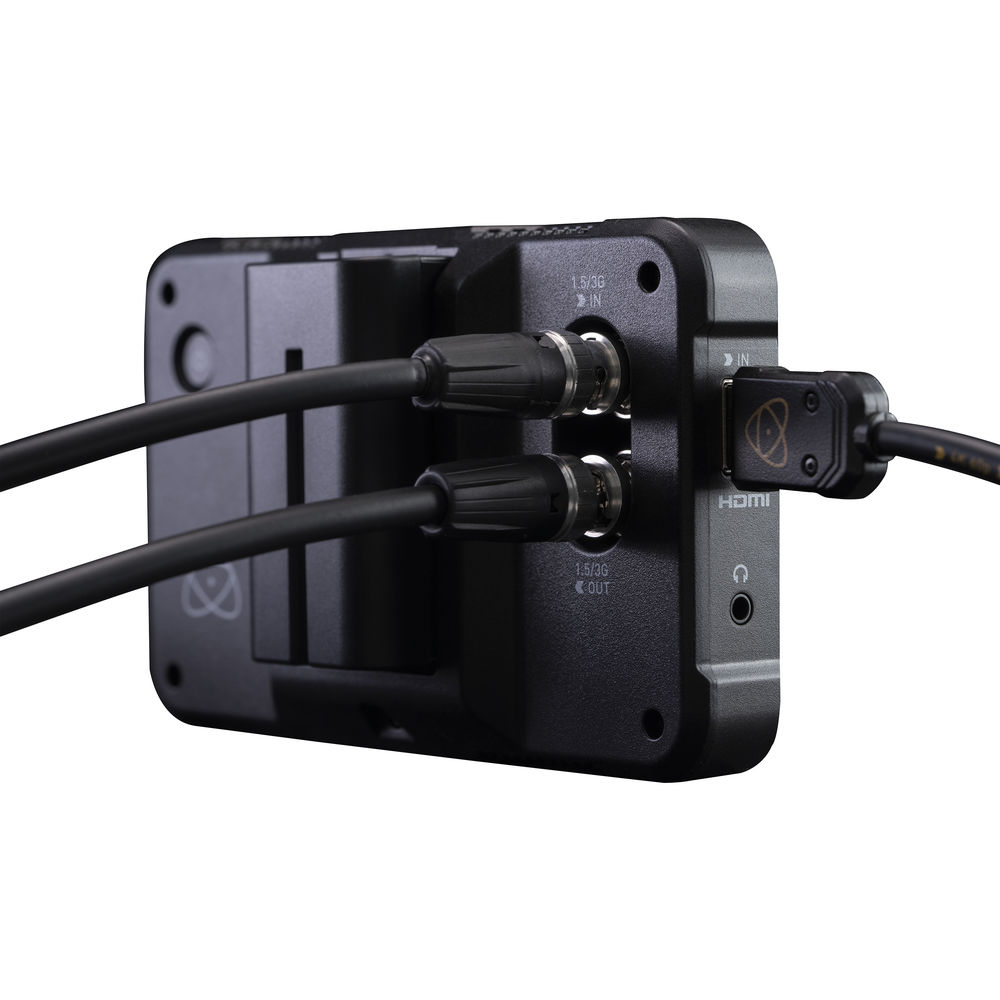

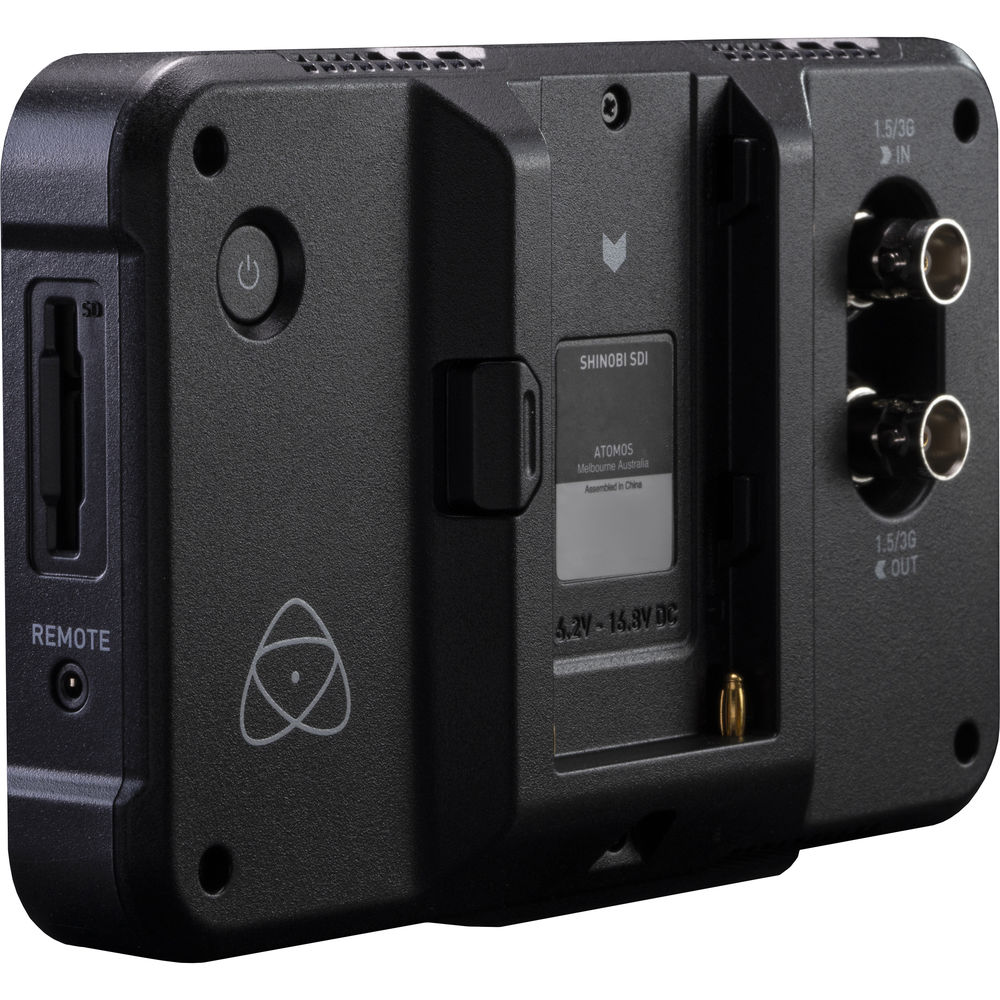

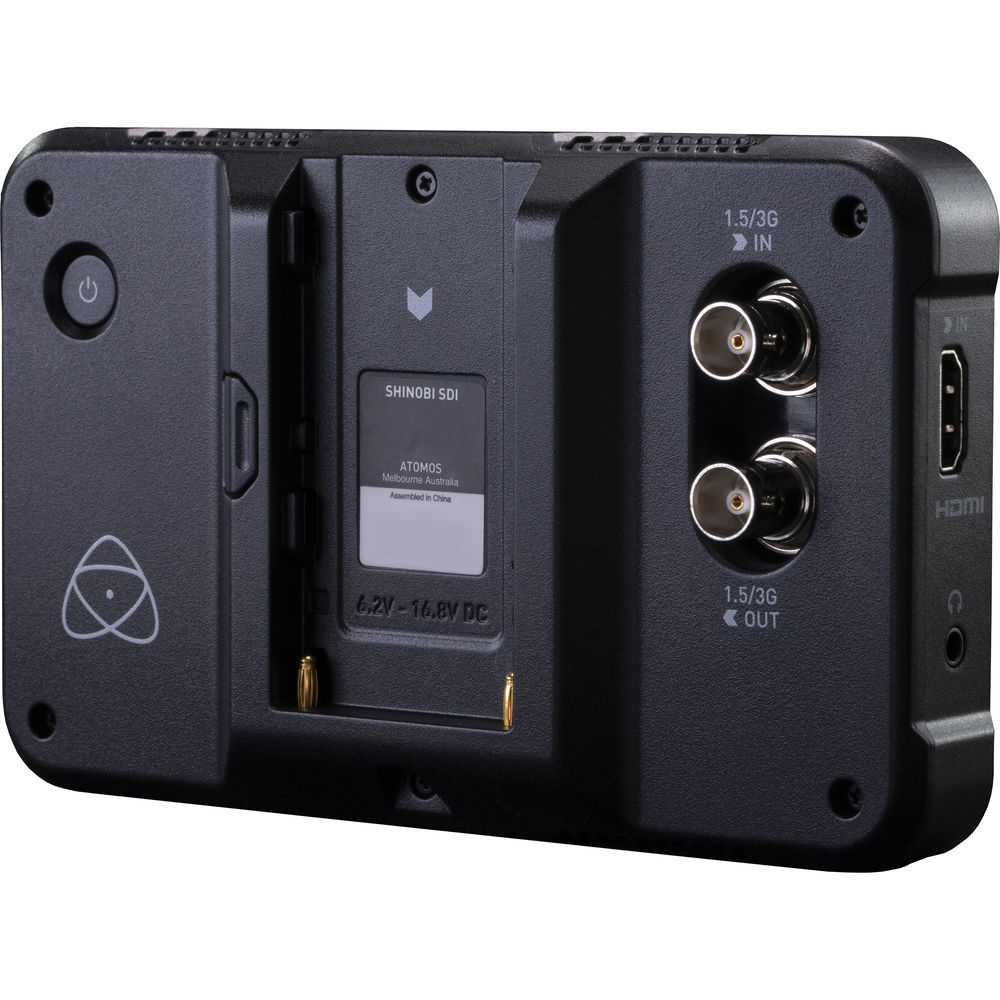

Atomos Shinobi SDI 5″ 3G-SDI & 4K HDMI Pro Monitor

في المخزن

Additional Information

Panel Type	IPS-Type LCD
Display Size	5.2" / 13.2 cm
Screen Resolution	1920 x 1080
Aspect Ratio	16:09
Touchscreen	Yes
Maximum Brightness	1000 cd/m2
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
Pixels Per Inch (ppi)	427 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	SDR
Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Video	1 x BNC (3G-SDI) Input 1 x HDMI Type A (HDMI 1.4) Input
Embedded Audio	SDI: 8-Channel HDMI: 2-Channel
Audio	1 x 3.5 mm Headphone Output
Built-In Speaker	None
Power	1 x Barrel Input
Other I/O	None
Card Slot	1 x SD
Video Format	SDI (8/10-Bit 4:2:2) DCI 2K: 59.94/50/29.97/25/24/23.98 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 720p: 59.94/50 HDMI (8/10-Bit 4:2:2) DCI 4K: 29.97/25/24/23.98 UHD 4K: 29.97/25/24/23.98 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 720p: 59.94/50
DC Input Power	6.2 to 16.8 VDC
Battery Type	1 x L-Series
Power Consumption	4 W (Typical) 7 W (Maximum)
Mounting	2 x 1/4"-20 Female
Operating Temperature	104°F / 40°C (Recommended)
Material of Construction	Polycarbonate
Dimensions (W x H x D)	5.94 x 3.6 x 1.24" / 151 x 91.5 x 31.5 mm
Weight	7.97 oz / 226 g
